Amp Config

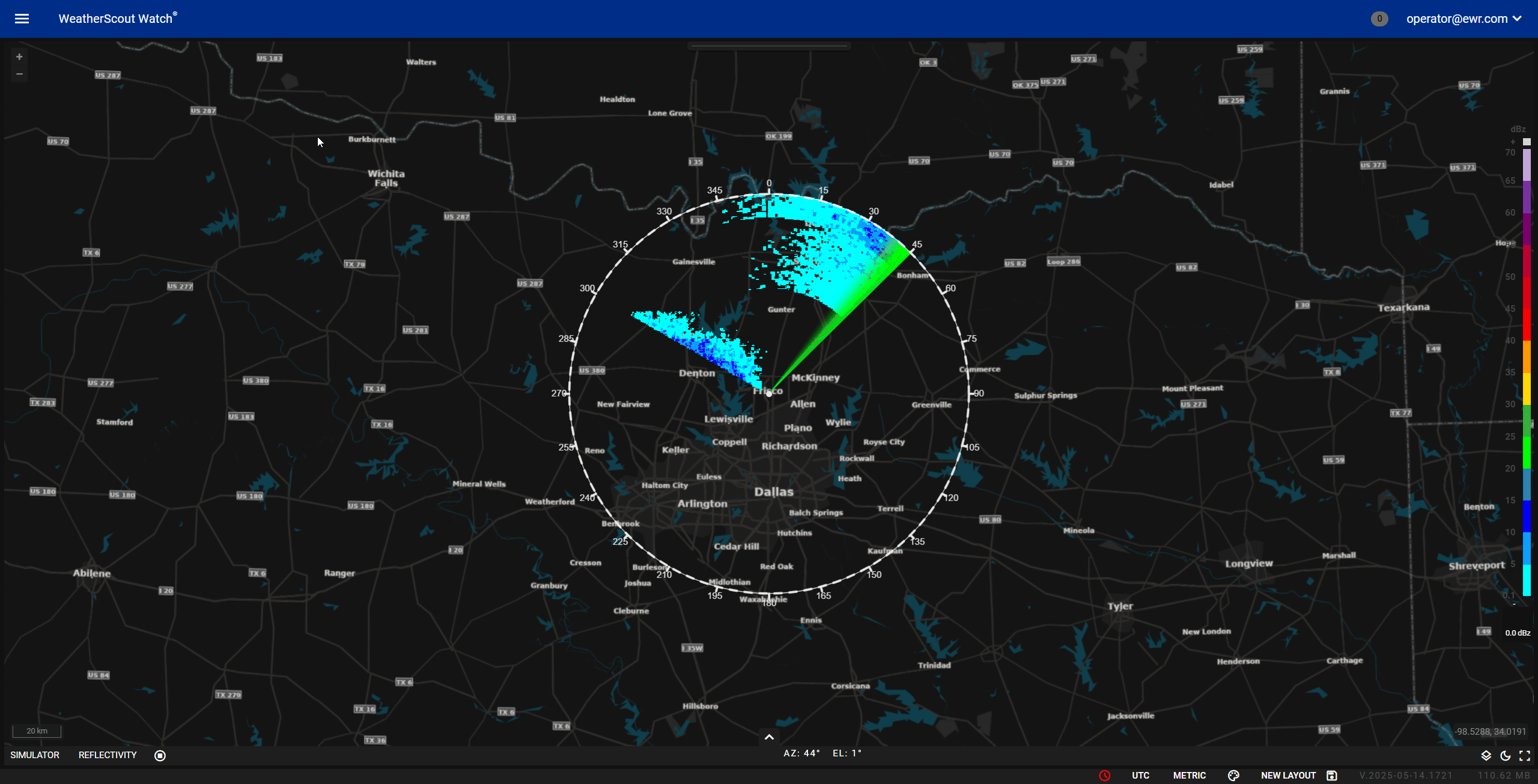

Control Radar Configure Amp Settings

The Amp Config page allows operators to view and manage the status and configuration of the radar's amplifier modules. This setting provides key information about amplifier performance, including current and temperature readings, as well as control options for Points of Interest (POI) monitoring.

Configuration Overview

Control Radar Configure Amp Settings

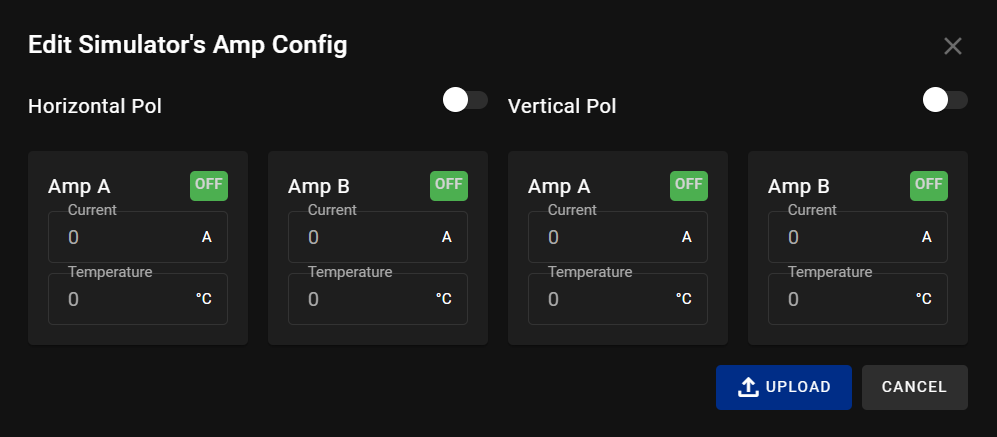

When the Amp Config option is selected from the radar control settings, the following interface elements will appear:

Taggable Switches

  • Horizontal POI
  • Vertical POI

These switches can be toggled on or off and are taggable, allowing for remote monitoring and control integration. Activating these switches enables focused monitoring of the horizontal and vertical Points of Interest within the radar's amplifier system.

Amplifier Boxes

There are four amplifier status boxes displayed:

  1. Amp A (Horizontal)
  2. Amp B (Horizontal)
  3. Amp A (Vertical)
  4. Amp B (Vertical)

Each amplifier box includes the following fields:

  • Current: Displays the current draw of the amplifier, in Amps.
  • Temperature (°C): Displays the current operating temperature of the amplifier in Celsius.
  • Status Indicator: Shows whether the amplifier is currently On or Off.

Example Descriptions

  • Amp A (Horizontal):
    Current: 12.3 A
    Temperature: 45 °C
    Status: On

  • Amp B (Horizontal):
    Current: 11.8 A
    Temperature: 44 °C
    Status: On

  • Amp A (Vertical):
    Current: 12.5 A
    Temperature: 46 °C
    Status: Off

  • Amp B (Vertical):
    Current: 12.0 A
    Temperature: 45 °C
    Status: On

Notes

  • The Status Indicator is color-coded or labeled to provide clear visual feedback on each amplifier's operational state.
  • Changes to the POI switches do not directly control the amplifier power state but influence POI monitoring behavior.
  • Operators should routinely monitor the Current and Temperature fields to ensure amplifiers are operating within safe parameters.
  • If any amplifier shows abnormal readings or is Off, it may require maintenance or further diagnostics.

Best Practices

  • Monitor amplifier temperatures, especially during high-power operations or adverse weather conditions.
  • Use the POI switches to focus monitoring on critical transmission paths.
  • Confirm the status indicators regularly to ensure system reliability.

Troubleshooting

  • Amplifier Off Unexpectedly:
    Check system logs or alerts. Review POI settings and environmental conditions.

  • High Temperature Warnings:
    Reduce system load if possible and inspect cooling systems.
