Schedule Configuration¶

The Schedule Configuration page allows users to manage the radar's schedule tasks, enabling precise control over when and how radar scans are executed.

Accessing Schedule Configuration¶

1. Click the Configure dropdown.
2. Select Schedule Config.
3. The Schedule Config box will appear, displaying all currently configured schedules.

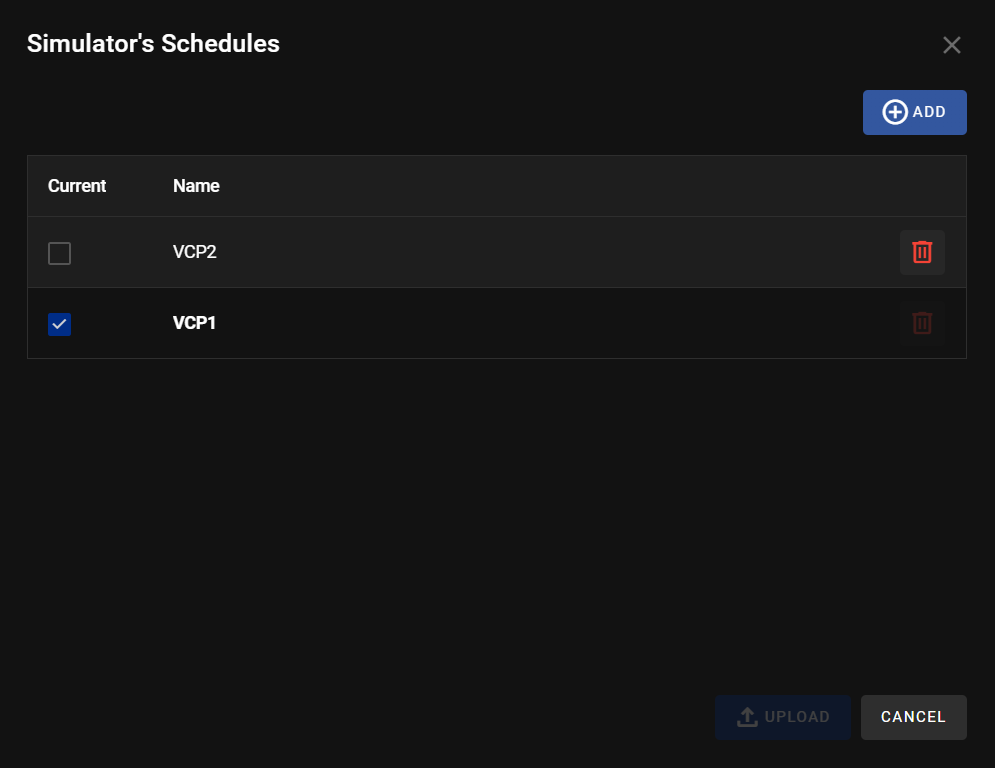

Schedule Config Box Overview¶

• The schedule list displays all created schedules in a checklist format.
• Columns displayed:
• Current (Check box to select active schedules)
• Name (Name of the schedule)
• Delete (Button to remove the schedule)

Actions Available:¶

• Add Schedule Button
  Located above the schedule list, this button opens the Add Schedule Box.

• Delete Button
  Next to each schedule, removes the selected schedule from the list.

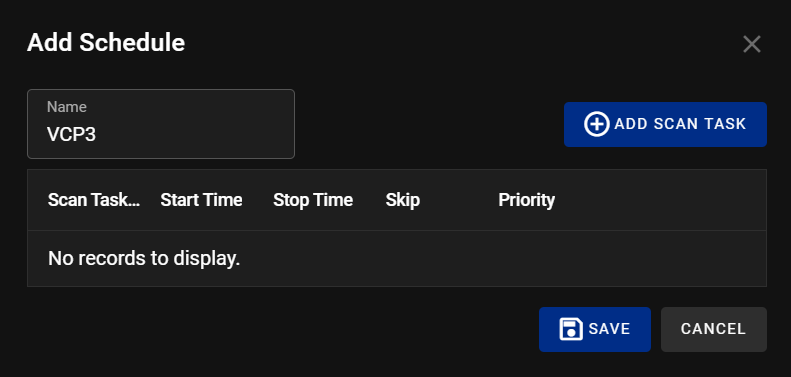

Adding a Schedule¶

Clicking the Add Schedule button will open the Add Schedule Box.

Add Schedule Box Fields:¶

• Search Field:
  Allows users to search for a schedule name. Useful when multiple schedules are configured.

• Schedule List Fields:

• Task Name: Name of the scheduled task.
• Start Time: Task start time.
• Stop Time: Task stop time.
• Skip: Option to skip specific occurrences.

• Priority: Defines the task execution priority.

• Add Task Button:
  Opens the Add Task Box to create a new task for the schedule.

Adding a Task to a Schedule¶

When Add Task is selected, the Add Task Box will appear.

Add Task Box Fields:¶

• Task Name:
  Name of the task to be added.

• Start Time (UTC):
  Start time of the task in Coordinated Universal Time.

• Stop Time (UTC):
  Stop time of the task in Coordinated Universal Time.

• Skip:
  Option to configure if this task should be skipped during certain conditions.

• Priority:
  Defines the execution priority of the task within the schedule.
