Adding a Clear Scan Task

Navigate To Radar Control Configure Task Config Add

The Clear scan task is a standard scanning mode used for weather radar operations. This mode allows for flexible configuration of various scanning parameters to suit specific observational needs.

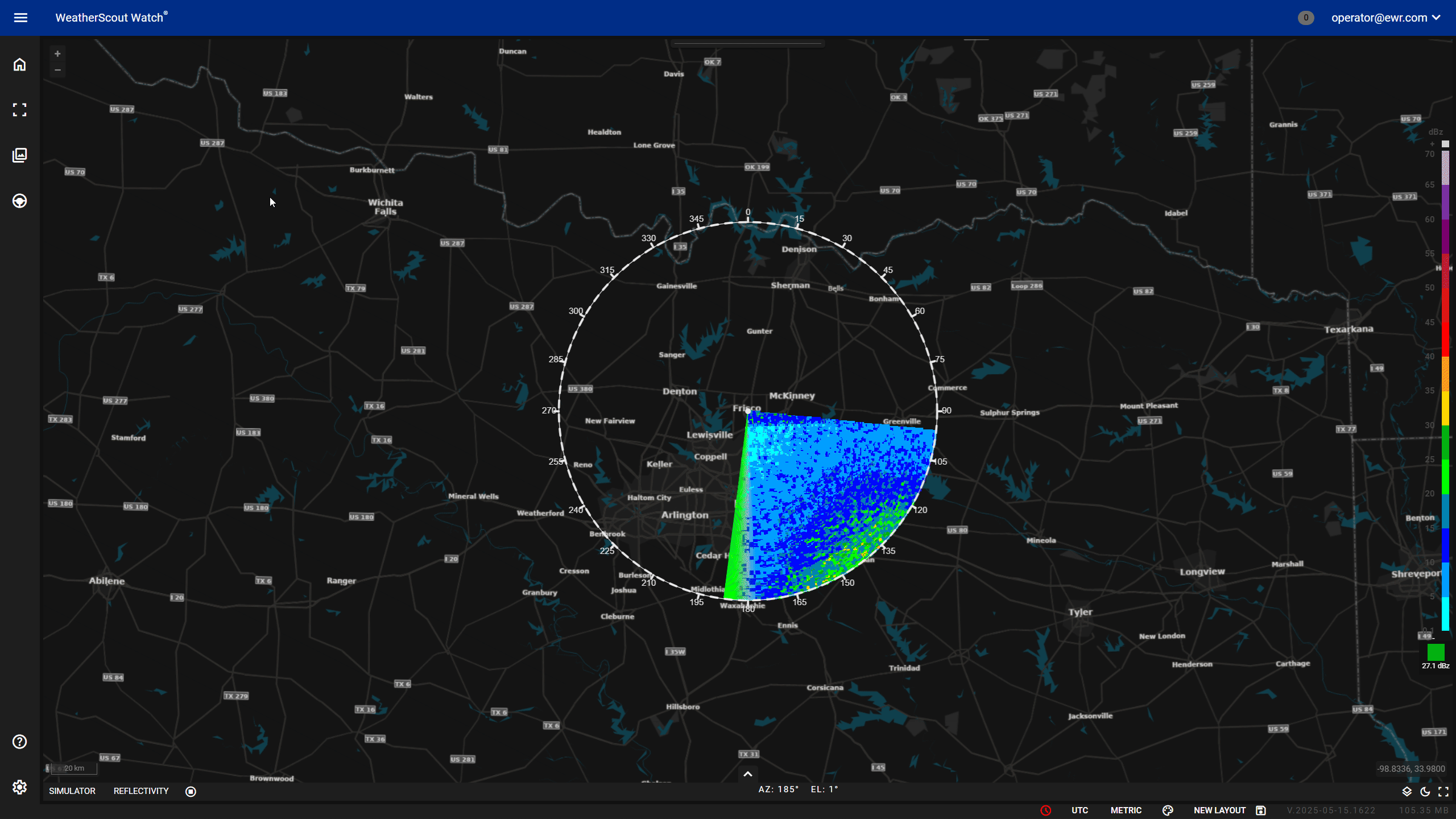

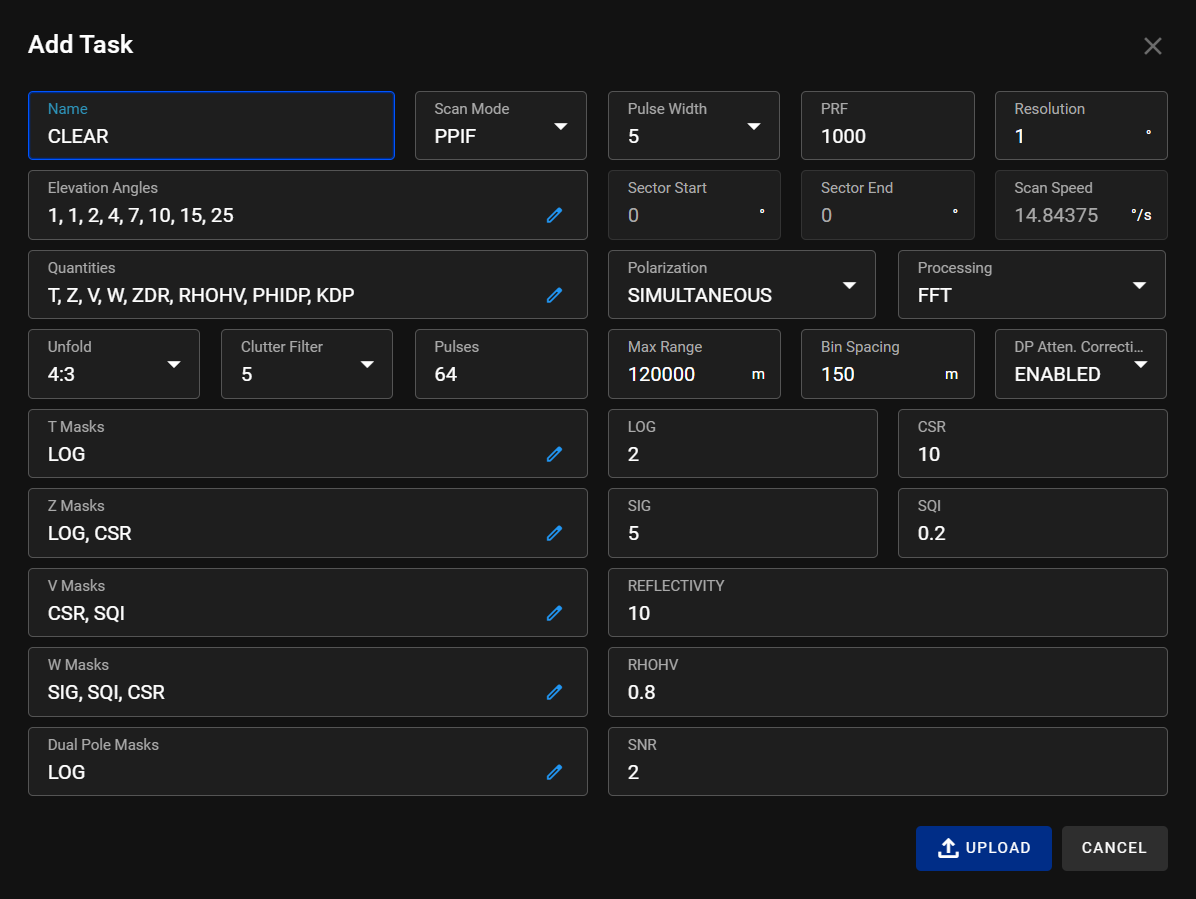

This guide outlines the fields required to add and configure a Clear scan task.

Required Fields

Name - Description: Unique identifier for the scan task. - Type: Text input

Scan Mode - Description: Defines the scanning geometry. - Options: - PPI (Plan Position Indicator) - PPIF (Plan Position Indicator Fixed) - RHI (Range Height Indicator)

Pulse Width - Description: Sets the duration of the transmitted pulse. - Type: Numerical input (µs)

PRF (Pulse Repetition Frequency) - Description: Sets the number of pulses transmitted per second. - Type: Numerical input (Hz)

Resolution - Description: Sets the range resolution. - Type: Numerical input (meters)

Elevation Angles - Description: Specifies the list of elevation angles for the scan. - Interface: Options box allowing you to: - Add numbers - Sort entries - Delete entries

Sector Start / Sector End - Description: Defines the azimuth sector to scan. - Type: Numerical input (degrees)

Scan Speed - Description: Rotation speed of the antenna. - Type: Numerical input (°/s)

Quantities - Description: Selects the radar data quantities to record. - Interface: Edit button (pencil icon) opens a checklist: - T - Z - V - W - SQI - RHOHV - PHID - KDP - ZDR

Polarization - Description: Selects the radar signal polarization. - Options: - Horizontal - Vertical - Simultaneous

Processing - Description: Configures the radar signal processing method. - Options: - FFT - DPRT

Unfold - Description: Velocity dealiasing method. - Options: - None - 3:2 - 4:3 - 5:4

Clutter Filter - Description: Applies clutter filtering. - Options: 0 - 7

Pulses - Description: Number of pulses to process. - Type: Numerical input

Max Range - Description: Maximum scanning range. - Type: Numerical input (meters)

Bin Spacing - Description: Distance between range bins. - Type: Numerical input (meters)

DP Atten. Correction - Description: Dual-polarization attenuation correction. - Options: - Enabled - Disabled

Mask Settings

The following mask types are available and share the same checklist items:

  • T Mask
  • Description: Threshold masking settings.
  • Z Mask
  • Description: Z masking settings.
  • V Mask
  • Description: Velocity masking settings.
  • W Mask
  • Description: Width masking settings.
  • Dual Pole Mask
  • Description: Dual-polarization data masking settings.

Interface:
Each mask type uses an Edit button (pencil icon) to open a checklist containing the following items: - CSR (Clutter suppression ratio) - LOG (Logarithmic filter setting) - REF (Reflectivity setting) - RHOHV (Correlation coefficient) - SIG (Signal quality) - SNR (Signal to noise ratio) - SQI (Signal Quality Index)
